Ezviz C6N G1 5MP 3K Pan & Tilt Wi-Fi IP Camera CCTV Indoor Smart Home Security

Ezviz C6N G1 5MP 3K Pan & Tilt Wi-Fi IP Camera CCTV Indoor Smart Home Security

Model : CS-C6N-R200-1Q5WFL
Camera

Image Sensor : 1/3" Progressive Scan CMOS
Shutter Speed : Self-adaptive shutter
Lens : 4mm@F1.6, view angle: 105°(Diagonal), 88° (Horizontal), 46°(Vertical)
Lens Mount : M12
Day & Night : IR-cut filter with auto-switching
DNR : 3D DNR
WDR : WDR
Compression
Video Compression : H.264 / H.265
Video Bit Rate : Adaptive bit rate
Max. Resolution : 3K (2880 × 1620）
Frame Rate : Self-adaptive during network transmission
Network
Smart Alarm : Motion Detection, AI-Powered Human Shape Detection
Wi-Fi Pairing : AP pairing
Protocol : EZVIZ Cloud Proprietary Protocol
Interface Protocol : EZVIZ Cloud Proprietary Protocol
Interface

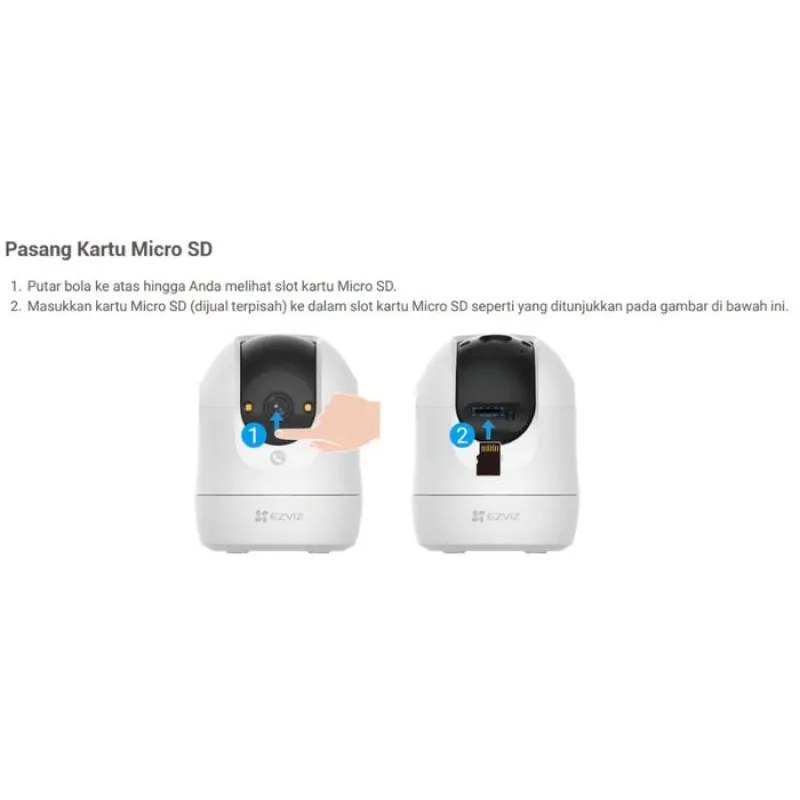

Storage : Supports microSD card (max. 512 GB)
Power : Type-C
Wired Network : RJ45 × 1 (10 M / 100 M self-adaptive Ethernet port)
Wi-Fi
Standard : IEEE802.11a, 802.11b, 802.11g, 802.11n,
Frequency Range : 2.4 GHz: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth : 2.4G: Supports 20MHz
Security : WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate : 11b 11Mbps, 11g 54Mbps, 11n MCS7, 11a 54Mbps, 11ac MCS9.11ax MCS11
Output Power (EIRP) : 19 dBm
Antenna Gain : 1.9 dBi
General
Operating Conditions : -10°C to 45°C (14°F to 113 °F )
Humidity 95% or less (non-condensing)
Power Supply : DC 5V / 2A
Power Consumption : Max. 8 W
IR Range : Max. 10 meters (32.81ft)
Dimensions : 88 × 88 × 113 mm (3.46 × 3.46 × 4.45 inch)
Packaging Dimensions : 103 × 103 × 168 mm (4.06 × 4.06 × 6.61 inch)
Net Weight : 222 g (0.49 lb)
In the box
- C6N G1 Camera
- Power Adapter
- Power Cable
- Drill Template
- Mounting Plate
- Screw Kit
- Regulatory Information × 2
- Quick Start Guide
